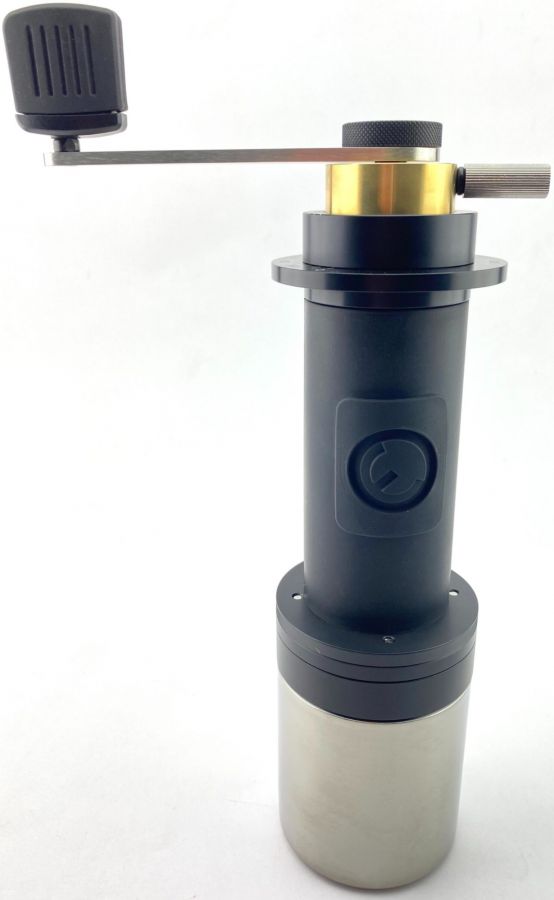

Orphan Espresso LIDO OG Manual Coffee Grinder

Price
349,00 € with VAT
Free shipping for this product!
Normally ships within:
1-2 workdays
Stock status:
In stock
Add to favorites
  • Etzinger Hardened Steel Burr Set
  • 48 mm OD Ring Burr, 32 mm Cone Burr
  • Dual Adjustment System - Stepped Macro & Stepless Micro
  • Custom Carrying Case Included

The Orphan Espresso LIDO OG Manual Coffee Grinder shares the overall design and approximate dimensions as the OE LIDO Series hand grinders, and uses the same Etzinger hardened steel burr set (48 mm OD Ring Burr, 32 mm Cone Burr*).

Coffee Beans are added to the Hopper through a side port which is sealed with a Silicone Cover. This design allows the fitment of OE:s innovative adjustment system at the top of the grinder. This system features a stepped Macro Disk for quick movement through the brewing range, and a stepless Micro Adjustment Disk which allows the fine tuning of the grind for espresso as well as any other coffee brewing methods. The Brass Micro Adjustment disk is secured in place by use of a nylon tipped Locking Pin.

The stepped Macro setting can be changed without affecting the Micro setting. The Macro settings are defined in microns of vertical cone burr movement with an operative range of 2000 microns (2 mm). The stepless Micro disk has marked increments in 5 micron resolution for espresso grinding.

The Drive system is all stainless steel, and the axle is supported by dual NTN Japan roller bearings, one in the Top Cap and one above the burr. The Micro Adjustment Disk rides on stainless steel needle bearings which result in a very smooth turning action. The grinding burr is completely open above an uncoated stainless steel grounds catch jar which threads securely onto the grinder.

FEATURES

  • Etzinger hardened steel burr set
  • 53 mm OD anodized aluminum hopper with full soft silicone sleeve cover
  • Dual Adjustment System - Stepped Macro, and Stepless Micro with No Tool Micro Lock
  • All Metal construction except for Delrin burr carrier & knob
  • NTN Japan Roller Bearing supported Stainless Steel Drivetrain
  • Simple and Repeatable Burr Alignment System
  • Modular design body assembly allows disassembly without affecting burr alignment
  • Stainless Steel Handle with Soft Grip Knob
  • Double Wall Stainless Steel Grounds Jar
  • No Tools required for adjustment, disassembly or assembly
  • Includes Cleaning Brush
  • Custom Carrying Case

The LIDO OG kit includes a custom zippered case, a cleaning brush, and a neoprene cover for the stainless steel handle (OE recommends you always use the neoprene cover on the handle when storing in the case to protect both the handle, and the grinder!).

*This burr is a moderate speed burr that produces a smooth milling action without requiring excessive force or strength to turn or grip even with light roast beans.

Product number
10383
Share product
  • Height: 27 cm (10.5")
  • Operative Handle Length: 10 cm (4")
  • Jar diameter: 7.5 cm (3")
  • Weight (without case): 1.038 kg
